Tail Lifts

MBB R 2000 L

  • 2,000 kg lifting capacity with four cylinders and 750 mm load distance
  • Simple-fold platform
  • Modular, boltable design for adaptation to a wide range of vehicle types
  • All-aluminium or steel/aluminium platform design
  • Spring-supported folding part
  • Platform package serves as underride guard
  • Bridging projection for espagnolettes
  • Powerful moving cylinder for horizontal positioning of the tail lift
  • Optimal adaptation to motor vehicles and trailers thanks to a wide range of different lifting arm lengths and pitches
  • Moving rails in steel as standard, optionally available in aluminium
  • Optionally available completely pre-assembled with energy chain
Enquire Now
RETRACTABLE

Experience The Product Features

Platform
Outside
OPERATION STANDARD
Sensors Standard
Options and Accessories
LIFTING GEAR STANDARD
Inside
Product Features

PLATFORM STANDARD

  • AluLite 30/40/40S – platform
  • Ground rollers
  • Warning flags red/white or black/yellow
  • LED warning lights
  • Protection bars for warning lights, pair
  • Roll protection

OUTSIDE

  • Aluminium platform with wet-painted rearside, with or without tip (in a RAL colour)
  • Aluminium platform anodised (up to 2000mm height)

OPERATION STANDARD

  • 3+1 controls (instead of control box)
  • 4-button control planel, slim, for internal installation (as further control device)
  • Foot controls integrated in platform (as further control unit)
  • 2-button wanderlead hand control w/o plug (as further control device)
  • 3-button wanderlead hand control w/o plug (as further control device)
  • Radio remote control RCBT (standard set) SN2050730
  • Radio remote control Akerström
  • Key switch or turning switch, lockable (not possible with MBB 3+1 and MBB 3+3+1 controls)

ELECTRICS / SENSORS STANDARD

  • 12V or 24V
  • Drivers cab switch with indicator OR interface ETMA Code A (V-lifts only cab switch)
  • Sensors b13 (lifting gear) and b15L (platform)
  • Surcharge for plug-in sensor b15S platform (instead sensor b15L)
  • Surcharge for sensor b15L lifting gear (instead sensor b13) = “2x b15”
  • Development of a customised program for MBB Control
  • EasyMove (only in connection with 2x sensor b15)
  • ETMA Code A + B (including plus and minus cable 3,8m)
  • Cable for box body light

OTHER OPTIONS AND ACCESSORIES

  • Safety gate, P-shape, in RAL-color e.g. 1023, piece, left or right (not for AluLite)

LIFTING GEAR STANDARD

  • Cylinders with protection bellows and tubes
  • All steel components in KTL
  • Vehicle specific mounting brackets
  • Lifting gear powder-coated (in RAL9011 or NOVA grey)
  • Provision for ball-head coupling installation MBB PTC 750 L / S & PTC 1000 LLW (incl. central support)

INSIDE

  • Increased anti-slip resistance R13 (for Aluminium platforms)
  • Plastic coating for platforms (incl. coated roll-stops) per m²

Technical Data

Technical Data
Weights
Diagram
Dimensions
Technical Data
Weights
Diagram
Dimensions
Lifting capacity 2000 kg
Main beam 180 x 180 mm
Lifting gear hydraulics 2 lifting cylinders / 2 tilting cylinders / 1 moving cylinder
Lift arm pitch /Lift arm length 750 / 1300 / 1480 mm
Load centre – lengthwise 750 mm
Load centre – across center Central 50% of rated load on one side
Inclination angle of the platform 10° to -10
Platform type alualu steelalu
Platform width 2400 2400
platform height 1805 1800
Dead Weight 665 770
Dead Weight

The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

a (mm) 750 900 1100 1600
Q (kg) 2000 1650 1300 950

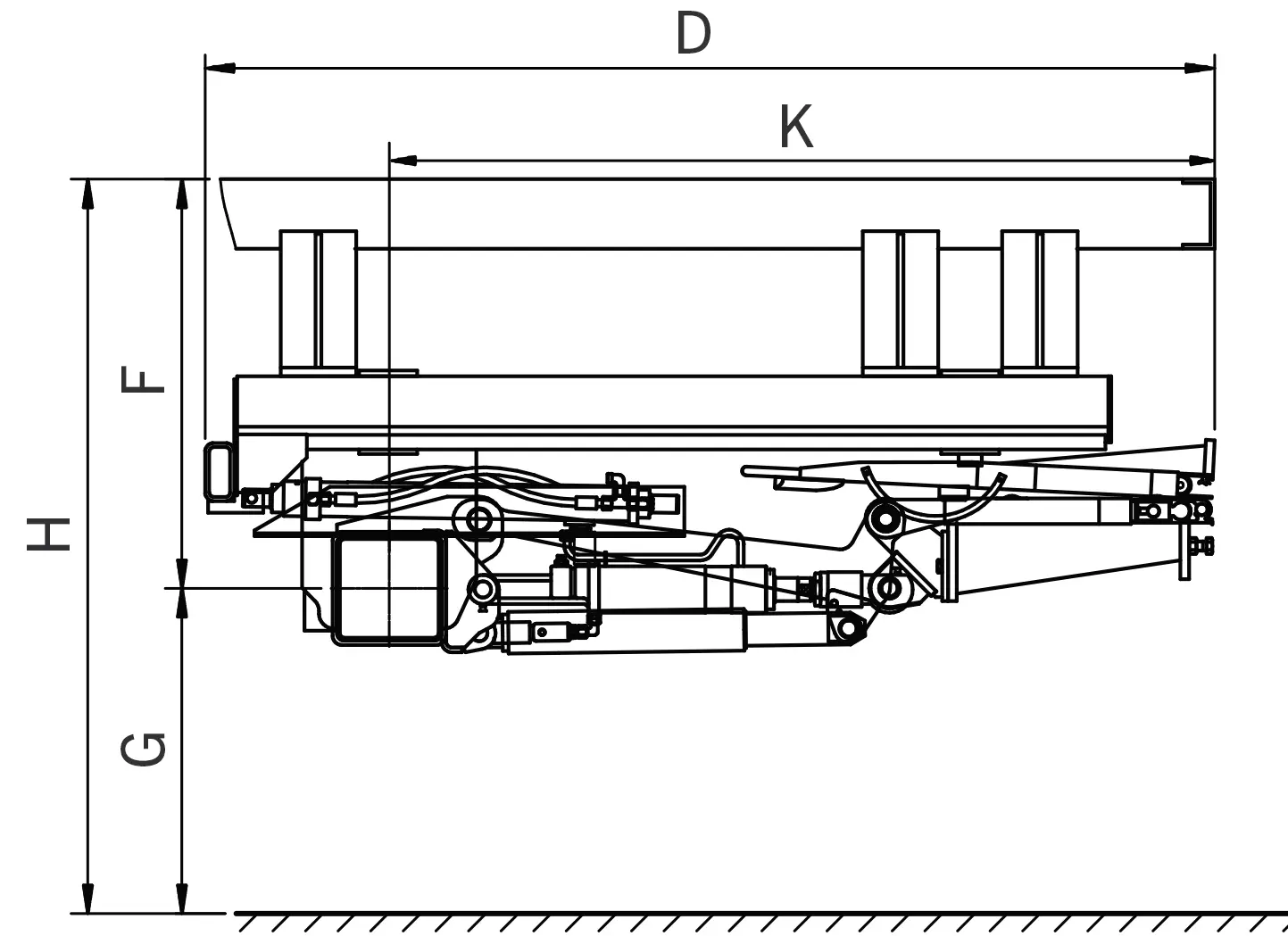

Lift arms (in mm) 700 800 900 1000 1100
H (max.) Loading height unloaded 1200 1428 1548 1651 1793
H (min.) Loading height loaded 883 916 1006 950 1023
F (max.) Middle of main beam to upper edge of loading floor 650 817 924 977 1056
K (min.) at dimension F (max.) 618 601 623 721 783
D (min.) Installation space (min.) 1800 1800 1900 1900 2000
F (min.) 508 566 614 569 608
K (max.) at dimension F (min.) 726 820 624 674 737
G (max.) Unloaded (middle of main beam to ground) 550 611 624 674 737
G (min.) loaded 375 350 392 381 415
E (max.) Vehicle frame width (max.) 920 920 920 920 920
E (min.) Vehicle frame width (min.) 645 645 645 645 645
