Loader Crane

PK 11.001 SLD 1

SINGLE LINK AND PERFECT POWER TO WEIGHT RATIO OFFER EFFICIENT LOAD HANDLING

  • More power on the hook due to Single Link
  • Higher payloads due to intelligent lightweight design
  • Perfect appearance and the highest value retention due to coating technology
Enquire Now
High Speed Extension

High Speed Extension

The High Speed Extension is a standard feature on PALFINGER loader cranes. Also referred to as Return Oil Utilization, this feature is a regenerative hydraulic circuit for the extension booms. It speeds up the boom extend and retract functions by up to 30%.

Read More
Single Link

Single Link

The knuckle joint significantly improves the crane’s motion geometry.

Technical Data

Technical Data
Lifting Capacities
Technical Data
Max. lifting moment 10.3 mt
Max. lifting capacity 5700 kg
Max. hydraulic outreach 12.0 m
Max. manual outreach 15.9 m
Slewing angle 400°
Slewing torque 1.3mt
Fitting space required (std) 1.30 mt
Width folded 2.32m
Max. operating pressure 330 bar
Pump capacity 30 – 45 l/min
Dead weight (std) 1140 kg

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

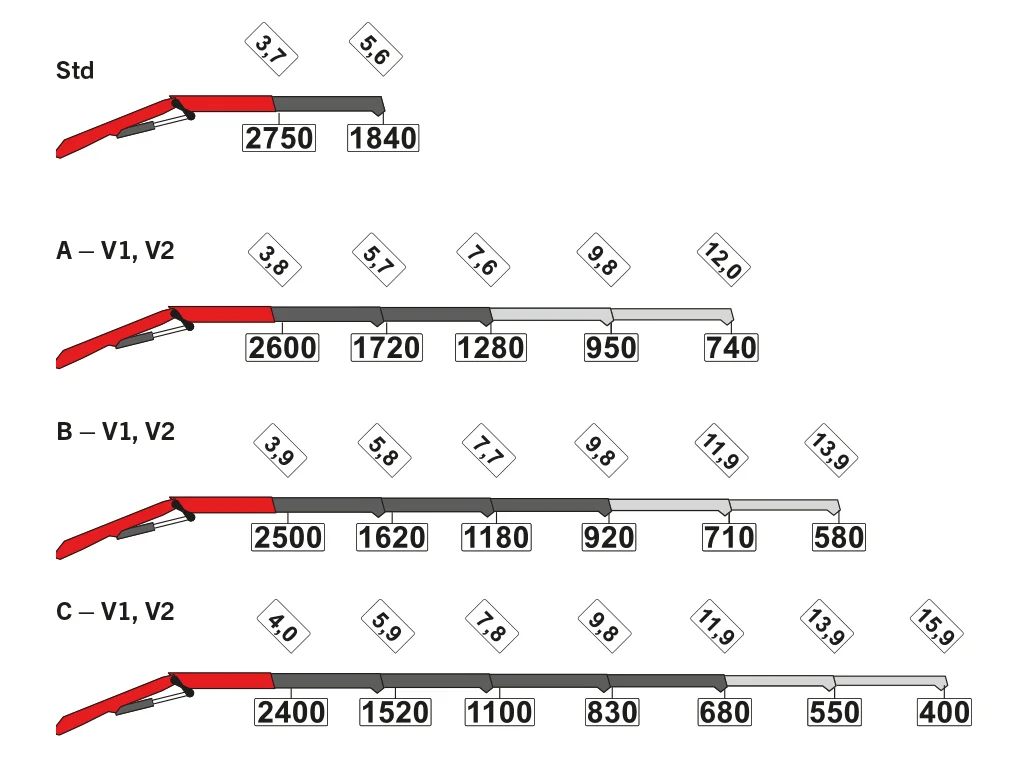

Lifting Capacities
Tech Icon Liftingoment IconLifting moment
(mt)
Tech Icon OutreachOutreach
(m)
Tech Icon Slewing AngleSlewing angle
(°)
Tech Icon Slewing TorqueSlewing torque
(mt)
Tech Icon PressurePressure
(MPa)
Tech Icon Pump CapacityPump capacity
(l/min)
Tech Icon Crane WeightCrane Weight
(kg)
Tech Icon Crane HeightCrane Height
(mm)
Tech Icon Crane WidthCrane Width
(mm)
Tech Icon Installation WidthInstallation Width
(mm)
Std 10.3 5.8 400 1.3 33.0 30-45 1140 2110 2400 720
A 10.0 7.8 400 1.3 33.0 30-45 1250 2110 2400 720
B 9.7 9.9 400 1.3 33.0 30-45 1350 2110 2400 720
C 9.5 12.0 400 1.3 33.0 30-45 1450 2110 2400 720

The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.

PK 11.001 SLD 1
