Loader Crane

PK 17.001 SLD 1

SOLID, SIMPLE AND AFFORDABLE

  • Additional applications with Single Link Plus
  • Higher payloads due to intelligent lightweight design
  • High degree of user-friendliness thanks to optional radio remote control
Enquire Now
Single Link

Single Link

The knuckle joint significantly improves the crane’s motion geometry.

Technical Data

Technical Data
Lifting Capacities
Technical Data
Max. lifting moment 16.8 mt
Max. lifting capacity 6200 kg
Max. hydraulic outreach 18.0 m
Max. manual outreach 19 m
Slewing angle 420°
Slewing torque 2 mt
Stabilizer spread (std) 5 m
Max. operating pressure 330 bar
Pump capacity 40 – 60 l/min
Dead weight (std) 1670 kg

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

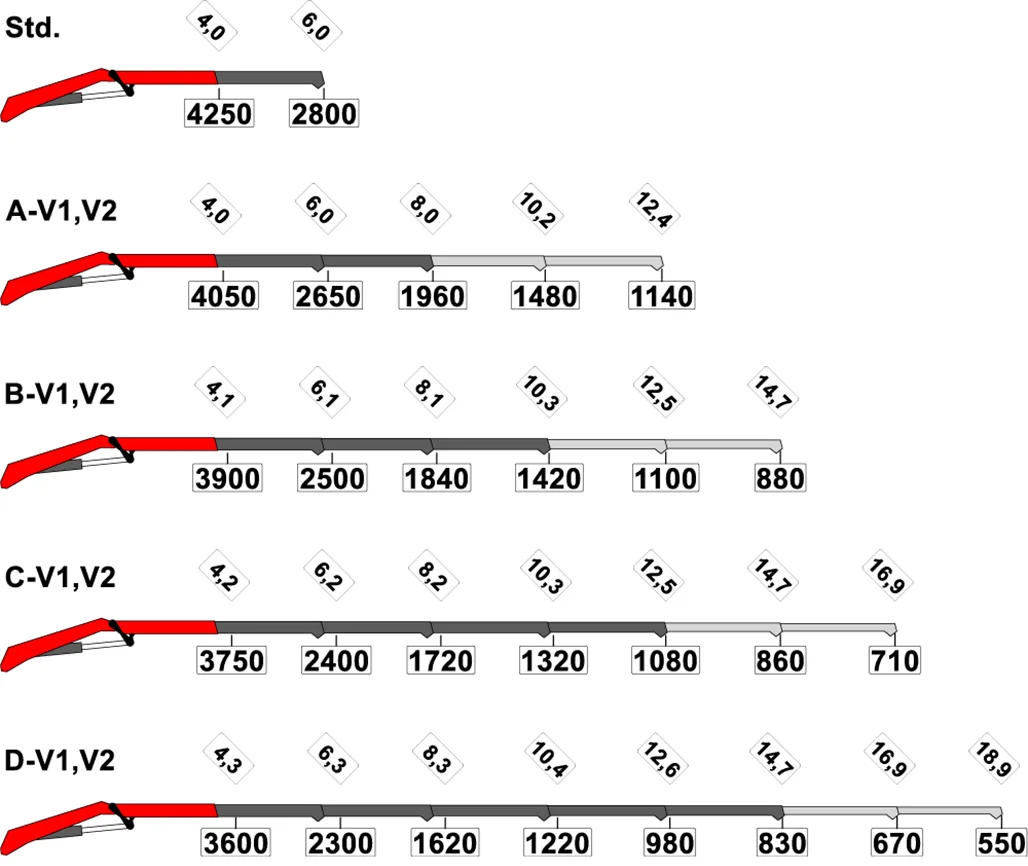

Lifting Capacities
Tech Icon Liftingoment IconLifting moment
(mt)
Tech Icon OutreachOutreach
(m)
Tech Icon Slewing AngleSlewing angle
(°)
Tech Icon Slewing TorqueSlewing torque
(mt)
Tech Icon PressurePressure
(MPa)
Tech Icon Pump CapacityPump capacity
(l/min)
Tech Icon Crane WeightCrane Weight
(kg)
Tech Icon Crane HeightCrane Height
(mm)
Tech Icon Crane WidthCrane Width
(mm)
Tech Icon Installation WidthInstallation Width
(mm)
Std 16.8 6.1 420 2 33 40-60 1670 2250 2400 825
A 16.3 8.2 420 2 33 40-60 1825 2250 2400 825
B 15.9 10.4 420 2 33 40-60 1960 2250 2400 825
C 15.6 12.6 420 2 33 40-60 2075 2250 2400 825
D 15.3 14.8 420 2 33 40-60 2175 2250 2400 825

The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.

PK 17.001 SLD 1
