Hooklift

VERSATILITY AT ALL STAGES

The versatility of the PALFINGER TELESCOPIC hooklift makes it the most popular choice among buyers. Covering the widest range of container length and lifting capacity on offer, it is configurable to meet a wide variety of standards and satisfy our customers worldwide. It’s very low transport height and light weight contribute to the assets to maximize application options safely.

The T 30 is suitable for 4-axle truck chassis application, and is capable of handling containers up to 30 t in loading, unloading, trailer transfer and tipping.

Thanks to the telescopic jib, users will be able to handle a wide range of different container lengths and work on a variety of applications with the same vehicle. In addition, rental, transport or waste management companies increase the operating possibilities of their fleet.

Thanks to a low transport height, the T 30 enables you to transport larger containers to increase the available volume. In addition, its light weight optimizes the available payload. Both benefits reduce the number of round trips required to complete a job, saving time and money.

ADVANTAGES of the TELESCOPIC category

  • Covers the widest range of container lengths
  • Low transport height
  • Easy to use and service
Enquire Now

Palfinger Origin Protection

The main components are sand-blasted, degreased, primer painted and final coated (according to customer specification) before assembling, all other parts are zinc nickel anticorrosion treated (meets ISO 12944 standard specifications concerning surface protection, classification 3).

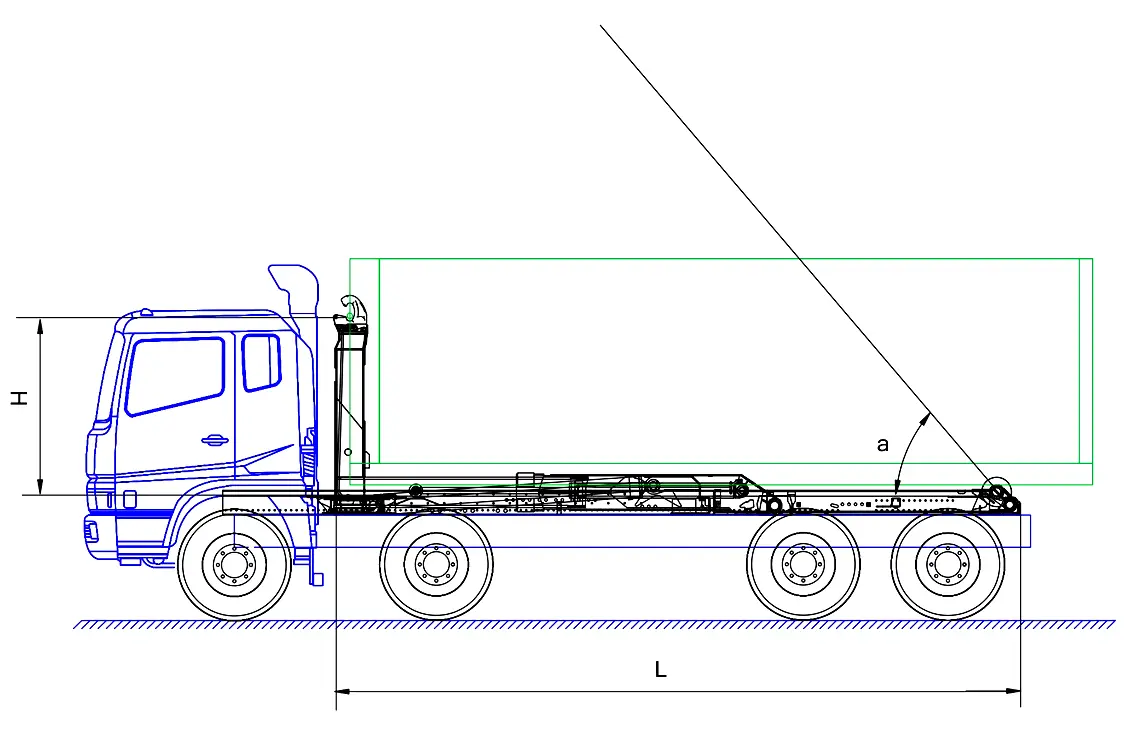

Technical Data

Technical Data
Technical Data
Product type T30_PI-SZ_01_L6010 T30_PI-SZ_01_L6310 T30_PI-SZ_01_L6760
Lifting Capacity
t
30 30 30
Dead Weight
kg
3080 3120 3190
Truck GVW
t
40 40 40
Hook Height
H(mm) *
1570 1570 1570
Length
L(mm)
6010 6310 6760
Container Length
Max(mm)
7200 7400 7800
Container Length 4600 4800 5200
Tipping Angle
a(°)
50 51 52
Pump Flow
l/min
80-110 80-110 80-110
Pressure Setting
bar
315 315 315
