PK 1050 TEC
- More intelligent operation with PALTRONIC 180 control electronics
- Extra smooth control thanks to LX-6 control valve
- Very stiff and light boom system thanks to P-Profile
- More efficient and faster due to continuous slewing system
- High user friendliness due to in-house developed radio remote control PALcom P7
- More efficiency with fly jib due to DPS-C
- Maximum utilisation of the working range thanks to extended HPSC
- More lifting power due to S-HPLS
- Practical and attractive due to Functional Design
Experience The Product Features





PALCOM
PRODUCT FEATURES
The PALcom P7 is a radio remote control developed personally by PALFINGER. The exclusive loader crane radio remote control handset features a modern, ergonomic design. The hand rests and set-up of the control levers are carefully chosen to enable fatigue-free work. A centrally located “PALdrive” knob and a large colour display enables a easy and safe operation. The “intelligent” charging station measures the battery´s charged state and temperature of the surrounding area, thereby facilitating a gentle and quick charging process. In addition, the charging station checks whether it and the battery are operating properly. The charching station also features a refresh function, which ensures full battery capacity throughout the entire service life of the battery.
MORE EFFICIENCY IN USE
- Long operational time thanks to long battery life (up to 12 hours)
- Stable radio transmittion thanks to frequency hopping
OPERATOR-FRIENDLINESS
- Fatigue-free operation thanks to ergonomic design of the hand rests and control panels
- Optimum wearing comfort thanks to ergonomically shaped carrying straps
SAFE CRANE OPERATION
- Accidential crane movements are avoided thanks to a rolloverand acceleration sensor
- Better legibility of the control symbols in poor lighting conditions thanks to four LED´s
- High safety standard thanks to optical, acoustic and haptic feedback on the radio remote control handset
ENVIRONMENTAL FRIENDLINESS
- Quick and gentle charging thanks to the intelligent charging station
- High battery lifetime thanks to the refresh function

AOS
PRODUCT FEATURES
The patented PALFINGER “AOS” oscillation suppression system cancels out vibrations and blows that occur during crane operation. Any “post-oscillation” is prevented through rapid braking or load changes. The result is a decisive increase to safety in crane operation for employees, the load and building.
HOW IT WORKS
The electronics receive signals from pressure sensors on both sides of the elevating cylinder and interpret them as arm vibrations. The signals for the counter-movement of the elevating cylinder are handled by the control valve. The incurred vibration can be cancelled through the exactly determined frequency and wavelength. The result is damping of the arm to just one or two short vibrations so that the arm comes to an immediate standstill.
* Optional feature/country-specific-equipment

HPSC
PRODUCT FEATURES
The High Performance Stability Control (HPSC) is a fully proportional system for monitoring the stability of the crane vehicle. Sensors for proportional path measurement in the stabilizer supports permit completely variable support positioning. Hence, the permissible, safe working range can be calculated for any support situation.
HOW IT WORKS
The HPSC system calculates the permissible working range for any slewing angle of the boom system and for any support situation. The position of the stabilizer support is detected by means of a cable extension transducer or magnetostrictive position sensor. Based on the intelligent calculation algorithm developed by PALFINGER, it works more efficiently than comparable systems that are available in the market.

HPSC Plus
PALFINGER has continued development of the well-proven stability control system HPSC and is offering additional application-orientated functions in a modular system. Three modules which are available on their own as well as combined, turn HPSC into HPSC-Plus. In this way, the stability control system can be adapted to the current situation and ensure an optimal performance.
* Optional feature/country-specific-equipment

P-FOLD
P-Fold is a comforable PALFINGER assistance system. It makes folding and unfolding an easy job for the operator. The P-Fold system also works in combination with the innovative RTC (Rope Tension Control). Both systems perfectly support the crane’s set-up processes and thus reduce set-up times to a minimum. The operator will be guided safe and clearly thanks to the intuitive menu navigation of the new PALcom P7 – a major benefit also for inexperienced operators. In addition to the significant increase in operator comfort, the prevention of damage on vehicle, load and rope is another important point.
* Optional feature/country-specific-equipment

Technical Data
Max. lifting moment | 95.0 mt |
Max. lifting capacity | 30000 kg |
Max. hydraulic outreach | 22.4 m |
Slewing angle | ∞ |
Slewing torque with 2 gears | 9.1 mt |
Stabilizer spread (std) | 8.8 m |
Fitting space required (std) | 1.72 m |
Width folded | 2.55 m |
Max. operating pressure | 385 bar |
Pump capacity | 2 x 100 – 123 l/min |
Dead weight (std) | 7480 kg |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
![]() (mt) |
![]() (m) |
![]() (°) |
![]() (mt) |
![]() (MPa) |
![]() (l/min) |
![]() (kg) |
![]() (mm) |
![]() (mm) |
![]() (mm) |
|
B | 92.9 | 9 | ∞ | 9.1 | 38.5 | 2 x 100-130 | 7483 | 2530 | 2550 | 1720 |
C | 90.6 | 10.9 | ∞ | 9.1 | 38.5 | 2 x 100-130 | 7817 | 2530 | 2550 | 1720 |
E | 88.7 | 15.2 | ∞ | 9.1 | 38.5 | 2 x 100-130 | 8440 | 2530 | 2550 | 1815 |
F | 88.8 | 17.5 | ∞ | 2.5 | 38.5 | 2 x 100-130 | 8735 | 2530 | 2550 | 1815 |
G | 87.2 | 19.9 | ∞ | 9.1 | 38.5 | 2 x 100-130 | 8983 | 2530 | 2550 | 1900 |
H | 84.5 | 22.4 | ∞ | 9.1 | 38.5 | 2 x 100-130 | 9208 | 2530 | 2550 | 1900 |

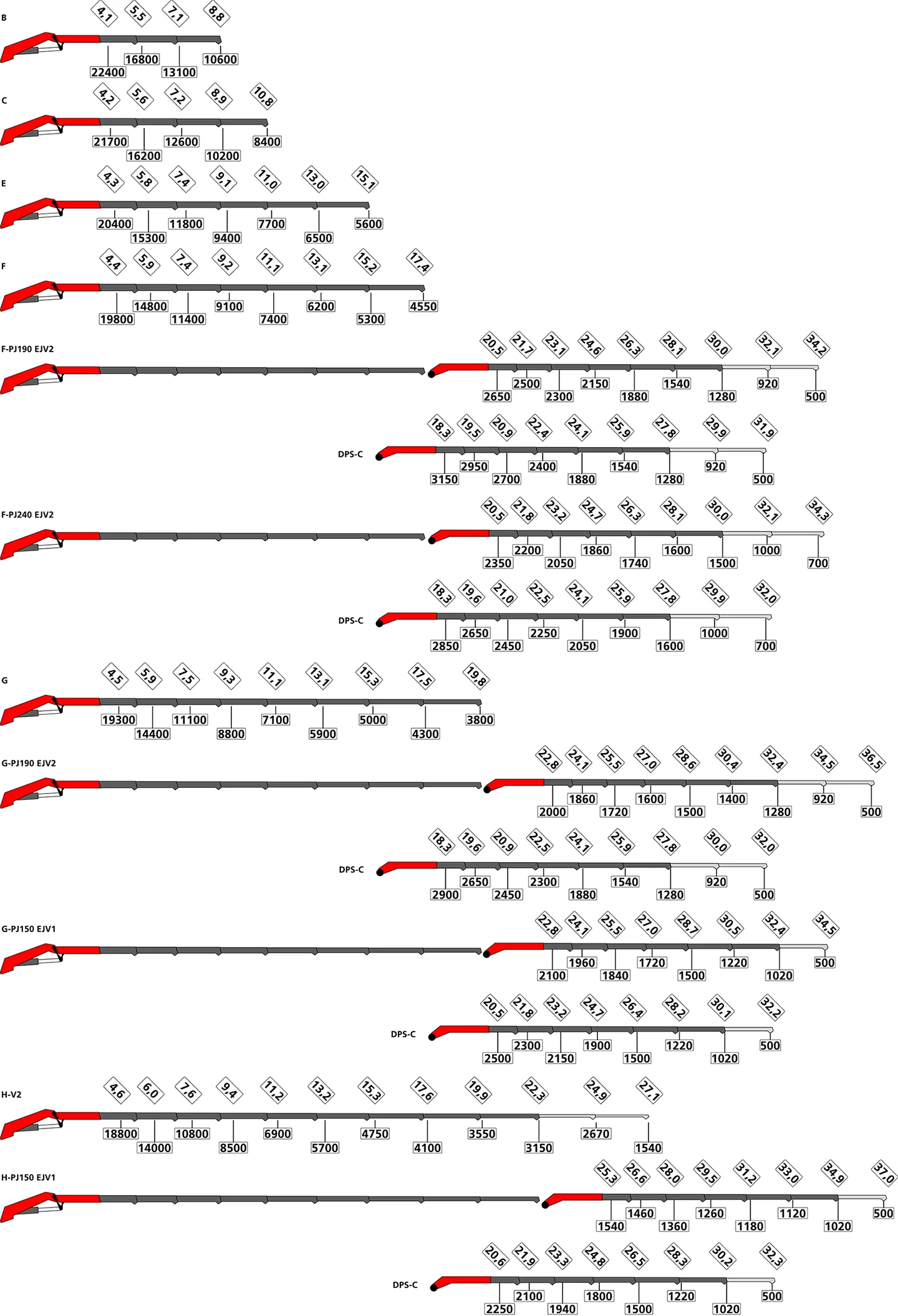

The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
