Tail Lifts
MBB V 1000 LQ
THE NEW V Range
The V 1000 LQ is a new development within the 1000 kg capacity segment.
An aluminium platform with many options and its low maintenance effort features this new column lift.
Enquire NowTechnical Data
Technical Data

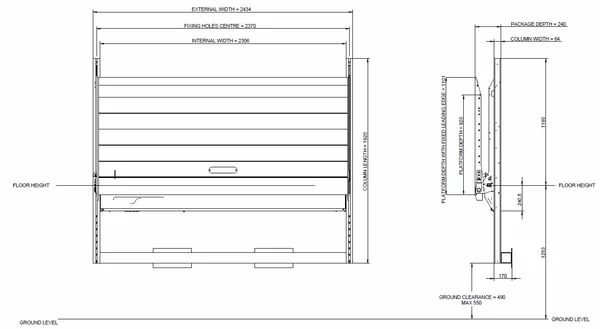

Diagram
| Model | V 1000 LQ |
| Lifting capacity (kg) | 1000 |
| Maximum width over columns (mm) | 2020 – 2470 |
| Maximum floor height (mm) | 1250 |
| Platform depths (mm) | 770 – 1220 |
| Platform type | Aluminium |
| Power closure version available | yes |
| Flush side ramps available | yes |

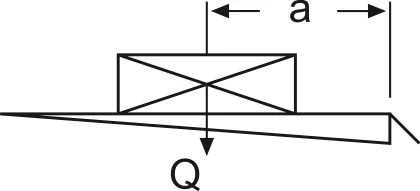

| a (mm) | Q (kg) |
| 600 | 1000 |
| 750 | 800 |
| 950 | 600 |
| 1400 | 400 |
