Tail Lift

MBB C 500 VAN

  • Individual installation kits for all common van types
  • Fast and simple attachment
  • Optimum relationship between lifting capacity and weight
  • 600 kg lifting capacity on request
  • Removable ball-head coupling optionally available
  • With aluminium AluLite 30 platform / AluLite 40L for VAN FLEX
  • Bridging plate(s) included
  • Illuminated registration plate holder
  • Full size platform
  • Variety of platform dimensions
  • With 900 mm roll stop as standard)

Available for:

  • Mercedes-Benz Sprinter
  • Volkswagen Crafter 30/35/50 / MAN TGE
  • Iveco Daily
  • Nissan NV 400 / Renault Master / Opel Movano
  • Citroen Jumper (Relay) / Fiat Ducato / Peugeot Boxer
  • Further vehicle types on request
Enquire Now
CANTILEVER

Experience The Product Features

Platform
Outside
OPERATION STANDARD
LIFTING GEAR STANDARD
Electrics / Sensors Standard
Product Features

PLATFORM STANDARD

  • AluLite 30/40/40S – platform
  • Ground rollers
  • Warning flags red/white or black/yellow
  • LED warning lights
  • Protection bars for warning lights, pair
  • Roll protection

OUTSIDE

  • Aluminium platform with wet-painted rearside, with or without tip (in a RAL colour)
  • Aluminium platform anodised (up to 2000mm height)

OPERATION STANDARD

  • 3+1 controls (instead of control box)
  • 4-button control planel, slim, for internal installation (as further control device)
  • Foot controls integrated in platform (as further control unit)
  • 2-button wanderlead hand control w/o plug (as further control device)
  • 3-button wanderlead hand control w/o plug (as further control device)
  • Radio remote control RCBT (standard set) SN2050730
  • Radio remote control Akerström
  • Key switch or turning switch, lockable (not possible with MBB 3+1 and MBB 3+3+1 controls)

LIFTING GEAR STANDARD

  • Cylinders with protection bellows and tubes
  • All steel components in KTL
  • Vehicle specific mounting brackets
  • Lifting gear powder-coated (in RAL9011 or NOVA grey)
  • Provision for ball-head coupling installation MBB PTC 750 L / S & PTC 1000 LLW (incl. central support)

ELECTRICS / SENSORS STANDARD

  • 12V or 24V
  • Drivers cab switch with indicator OR interface ETMA Code A (V-lifts only cab switch)
  • Sensors b13 (lifting gear) and b15L (platform)
  • Surcharge for plug-in sensor b15S platform (instead sensor b15L)
  • Surcharge for sensor b15L lifting gear (instead sensor b13) = “2x b15”
  • Development of a customised program for MBB Control
  • ETMA Code A + B (including plus and minus cable 3,8m)

Technical Data

Technical Data
Weights

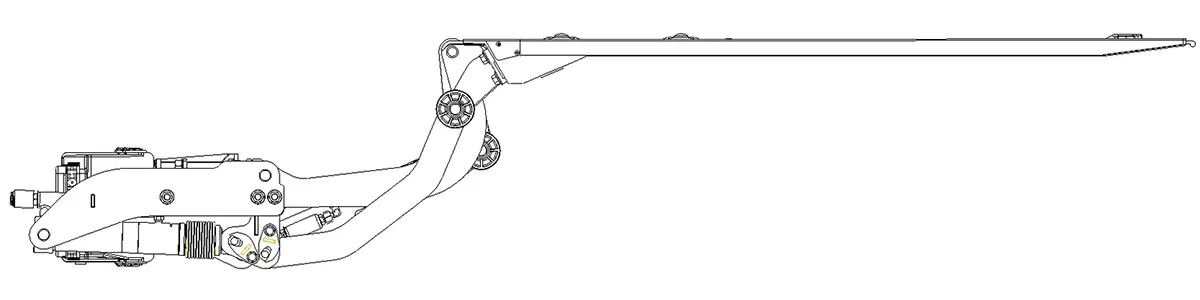

Diagram
Dimensions
Technical Data
Weights
Diagram
Dimensions
Lifting capacity 500 kg (600 kg optional)
Main beam 120 x 80 mm
Lifting gear hydraulics 1 lifting cylinder / 1 tilting cylinder
Platform overlap with floor 510 mm
Lift arm pitch /Lift arm length 600 mm
Load centre – lengthwise 600 mm
Load centre – across center Central 50% of rated load on one side
Inclination angle of the platform +90° to -10°
Platform type alu
Platform width 1400
platform height 1575
Dead Weight 154
Dead Weight

The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

a (mm) Q (kg)
600 500
700 430
820 360
1120 260
Lifting capacity 500 kg (600 kg optional)
Main beam 120 x 80 mm
Lifting gear hydraulics 1 lifting cylinder / 1 tilting cylinder
Platform overlap with floor 510 mm
Lift arm pitch /Lift arm length 600 mm
Load centre – lengthwise 600 mm
Load centre – across center Central 50% of rated load on one side
Inclination angle of the platform +90° to -10°
