Loader Crane

PK 7.001 SLD 1

HIGHER PAYLOAD DUE TO INTELLIGENT LIGHTWEIGHT DESIGN

  • More power on the hook due to Single Link
  • Shorter load cycle times due to High Speed Extention
  • Perfect appearance and the highest value retention due to coating technology
Enquire Now
High Speed Extension

High Speed Extension

The High Speed Extension is a standard feature on PALFINGER loader cranes. Also referred to as Return Oil Utilization, this feature is a regenerative hydraulic circuit for the extension booms. It speeds up the boom extend and retract functions by up to 30%.

Read More

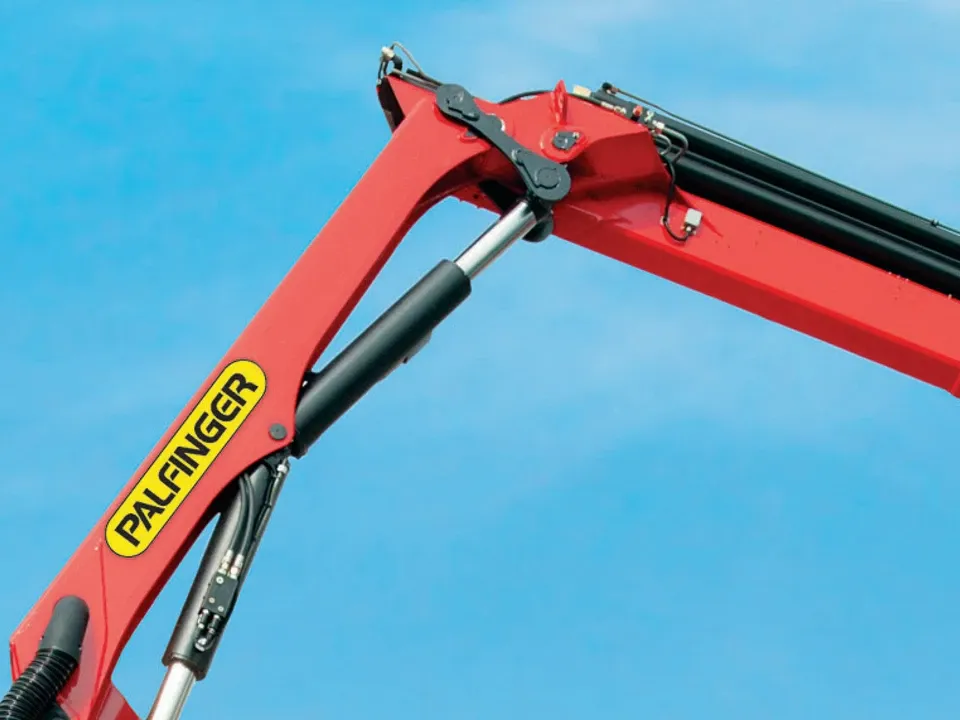

Single Link

Single Link

The knuckle joint significantly improves the crane’s motion geometry.

Technical Data

Technical Data
Lifting Capacities
Technical Data
Max. lifting moment 6.2 mt
Max. lifting capacity 3300 kg
Max. hydraulic outreach 11.2 m
Max. manual outreach 12.9 m
Slewing angle 400°
Slewing torque 0.8 mt
Stabilizer spread (std) 30 m
Fitting space required (std) 0.66 m
Width folded 2.20 m
Max. operating pressure 360 bar
Pump capacity 20-30 l/min
Dead weight (std) 750 kg

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

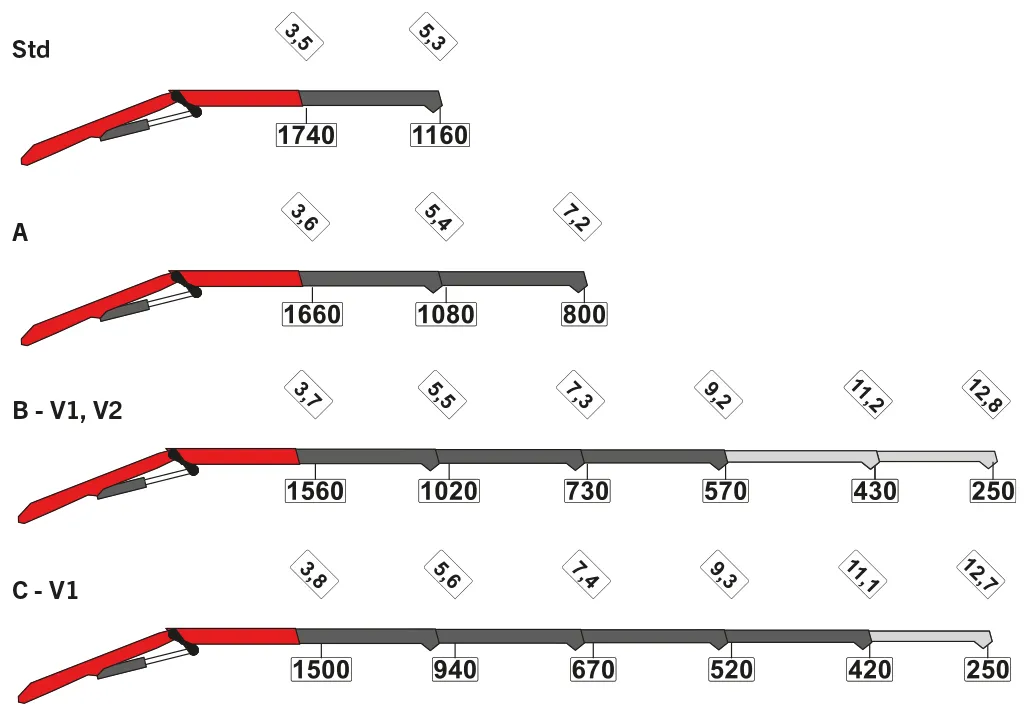

Lifting Capacities
Tech Icon OutreachLifting moment
(mt)
Tech Icon PressureOutreach
(m)
Tech Icon Pump CapacitySlewing angle
(°)
Tech Icon Slewing AngleSlewing torque
(mt)
Tech Icon Slewing TorquePressure
(MPa)
Tech Icon Crane HeightPump capacity
(l/min)
Tech Icon Crane WeightCrane Weight
(kg)
Tech Icon Crane WidthCrane Height
(mm)
Tech Icon Installation WidthCrane Width
(mm)
Tech Icon Liftingoment IconInstallation Width
(mm)
Std 6.2 5.5 400 0.8 33.0 20-30 750 1930 2200 660
A 5.9 7.4 400 0.8 33.0 20-30 830 1930 2200 660
B 5.8 9.3 400 0.8 33.0 20-30 900 1930 2200 660
C 5.6 11.2 400 0.8 33.0 20-30 960 1930 2200 660

The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.

PK 7.001 SLD 1 Lifting Capacities
