Loader Crane

PK 8.501 SLD 1

INTELLIGENT LIGHTWEIGHT DESIGN OFFERS AN OPTIMIZED MOUNTING CONCEPT

  • More power on the hook due to Single Link
  • Shorter load cycle times due to High Speed extension
  • Perfect appearance and the highest value retention due to coating technology
Enquire Now
High Speed Extension

High Speed Extension

The High Speed Extension is a standard feature on PALFINGER loader cranes. Also referred to as Return Oil Utilization, this feature is a regenerative hydraulic circuit for the extension booms. It speeds up the boom extend and retract functions by up to 30%.

Read More
Single Link

Single Link

The knuckle joint significantly improves the crane’s motion geometry.

Technical Data

Technical Data
Lifting Capacities
Technical Data
Max. lifting moment 8.1 mt
Max. lifting capacity 5700 kg
Max. hydraulic outreach 11.8 m
Max. manual outreach 15.8 m
Slewing angle 400°
Slewing torque 1.0 mt
Stabilizer spread (std) 3.2 m
Fitting space required (std) 0.72 m
Max. operating pressure 330 bar
Pump capacity 25-35 l/min
Dead weight (std) 1050 kg

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

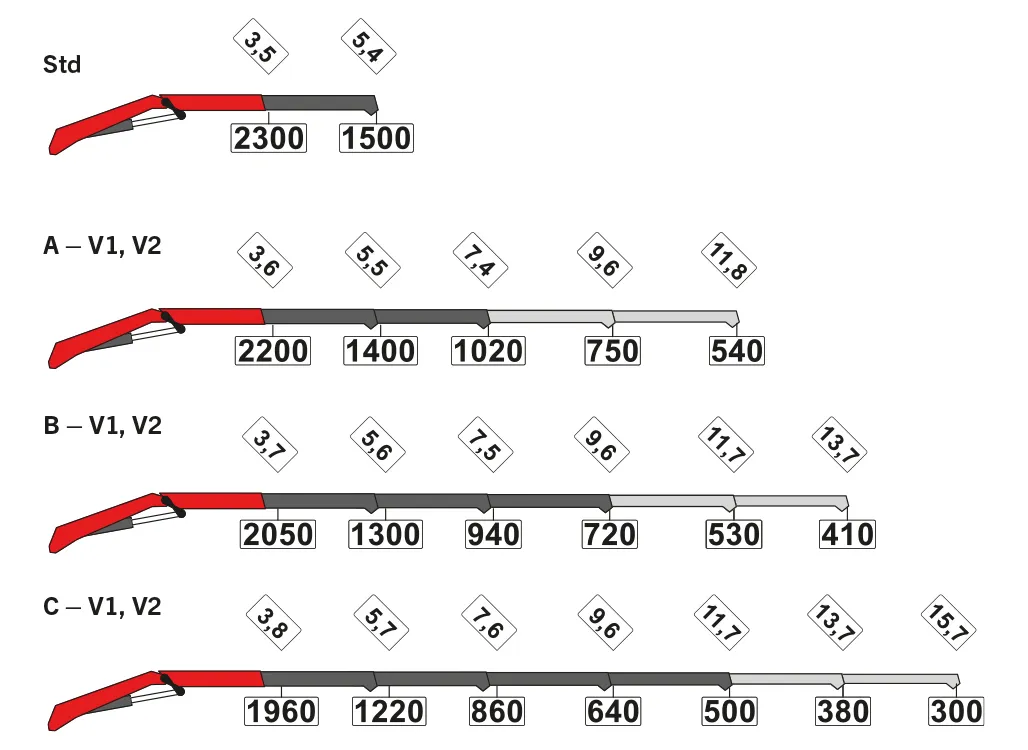

Lifting Capacities
Tech Icon OutreachLifting moment
(mt)
Tech Icon PressureOutreach
(m)
Tech Icon Pump CapacitySlewing angle
(°)
Tech Icon Slewing AngleSlewing torque
(mt)
Tech Icon Slewing TorquePressure
(MPa)
Tech Icon Crane HeightPump capacity
(l/min)
Tech Icon Crane WeightCrane Weight
(kg)
Tech Icon Crane WidthCrane Height
(mm)
Tech Icon Installation WidthCrane Width
(mm)
Tech Icon Liftingoment IconInstallation Width
(mm)
Std 8.18 5.6 400 1.0 33.0 25-35 1050 2005 2300 720
A 7.8 7.6 400 1.0 33.0 25-35 1140 2005 2300 720
B 7.6 9.7 400 1.0 33.0 25-35 1240 2005 2300 720
C 7.4 44.8 400 1.0 33.0 25-35 1320 2005 2300 720

The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.

PK 8.501 SLD 1 Lifting Capacities
