Tail Lift
MBB C 750 S
TAIL LIFT
- For small vans up to 7.5 t
- 750 kg lifting capacity with 600 mm load distance
- Robust four-cylinder lifting mechanism
- Single-piece underride guard / optionally as three-piece component
- A fixture for a ball-head coupling is available with the three-piece underride guard
- Low system weight
- Simple attachment thanks to boltable mounting plates
- Also available as part-sized tail lift
Available for
- Mercedes-Benz Sprinter 3/5
- Volkswagen Crafter 30/35/50
- Iveco Daily
- Renault Master
- Ford Transit
- Citroen Jumper / Fiat Ducato / Peugeot Boxer
- Further vehicle types on request
CANTILEVER
Experience The Product Features
Platform
Outside
OPERATION STANDARD
LIFTING GEAR STANDARD
Electrics / Sensors Standard
PLATFORM STANDARD
- AluLite 30/40/40S – platform
- Ground rollers
- Warning flags red/white or black/yellow
- LED warning lights
- Protection bars for warning lights, pair
- Roll protection
OUTSIDE
- Aluminium platform with wet-painted rearside, with or without tip (in a RAL colour)
- Aluminium platform anodised (up to 2000mm height)
OPERATION STANDARD
- 3+1 controls (instead of control box)
- 4-button control planel, slim, for internal installation (as further control device)
- Foot controls integrated in platform (as further control unit)
- 2-button wanderlead hand control w/o plug (as further control device)
- 3-button wanderlead hand control w/o plug (as further control device)
- Radio remote control RCBT (standard set) SN2050730
- Radio remote control Akerström
- Key switch or turning switch, lockable (not possible with MBB 3+1 and MBB 3+3+1 controls)
LIFTING GEAR STANDARD
- Cylinders with protection bellows and tubes
- All steel components in KTL
- Vehicle specific mounting brackets
- Lifting gear powder-coated (in RAL9011 or NOVA grey)
- Provision for ball-head coupling installation MBB PTC 750 L / S & PTC 1000 LLW (incl. central support)
ELECTRICS / SENSORS STANDARD
- 12V or 24V
- Drivers cab switch with indicator OR interface ETMA Code A (V-lifts only cab switch)
- Sensors b13 (lifting gear) and b15L (platform)
- Surcharge for plug-in sensor b15S platform (instead sensor b15L)
- Surcharge for sensor b15L lifting gear (instead sensor b13) = “2x b15”
- Development of a customised program for MBB Control
- ETMA Code A + B (including plus and minus cable 3,8m)
Technical Data
Technical Data
Weights

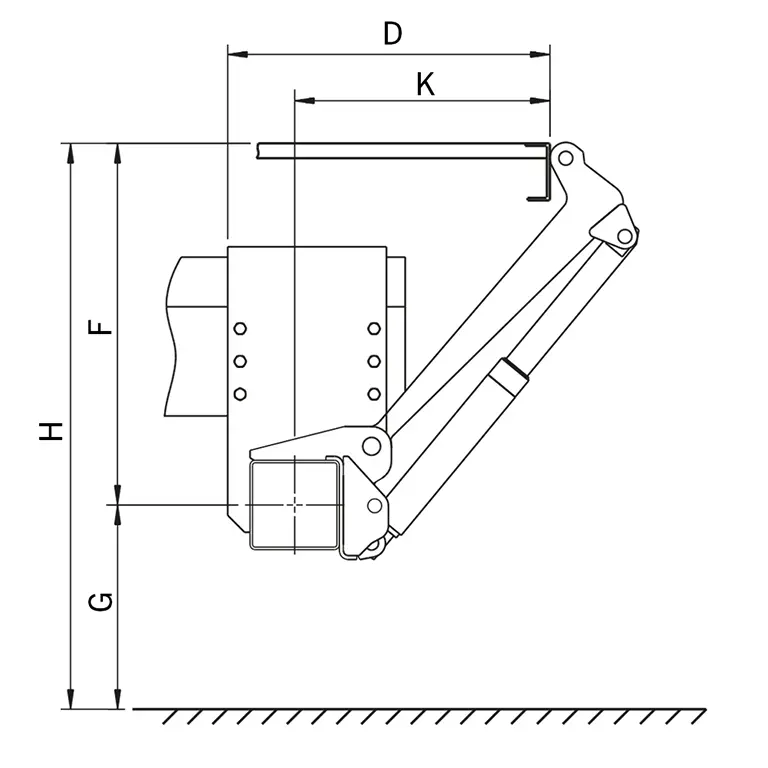

Diagram
Dimensions
| Lifting capacity | 750 kg |
| Main beam | 120 x 80 x 5 mm |
| Lifting gear hydraulics | 2 lifting cylinder / 2 tilting cylinder |
| Platform overlap with floor | – 44 mm |
| Lift arm pitch /Lift arm length | 460 / 1120 / 1240 |
| Load centre – lengthwise | 600 mm |
| Load centre – across center | Central 50% of rated load on one side |
| Inclination angle of the platform | +90° to -10° |
| Platform type | alu | alu |
| Platform width | 2100 | 2100 |
| platform height | 1450 | 1600 |
| Dead Weight | 210* | 216* |
| Dead Weight | – | |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
| a (mm) | Q (kg) |
| 600 | 500 |
| 700 | 430 |
| 820 | 360 |
| 1120 | 260 |
| Lift arms (in mm) | 900 |
| H (max.) Loading height unloaded | 1554 |
| H (min.) Loading height loaded | 1225 |
| F (max.) Middle of main beam to upper edge of loading floor | 924 |
| K (min.) at dimension F (max.) | 655 |
| D (min.) Installation space (min.) | 846 |
| D (max.) Installation space (max.) | 921 |
| F (min.) | 860 |
| K (max.) at dimension F (min.) | 730 |
| G (max.) Unloaded (middle of main beam to ground) | – |
| G (min.) loaded | – |
| E (max.) Vehicle frame width (max.) | – |
| E (min.) Vehicle frame width (min.) | – |
