Hooklift

T08

High lifting capacity

Suitable for 2-axle truck chassis application

Technical Data

Technical Data
Technical Data
Product type T8_PI-SZ_01_L3550 T8_PI-SZ_01_L3800 T8_PI-SZ_01_L4200 T8_PI-SZ_01_L4600
Lifting Capacity
t
8 8 8 8
Dead Weight
kg
1050 1060 1120 1140
Truck GVW
t
10/12 10/12 10/12 10/12

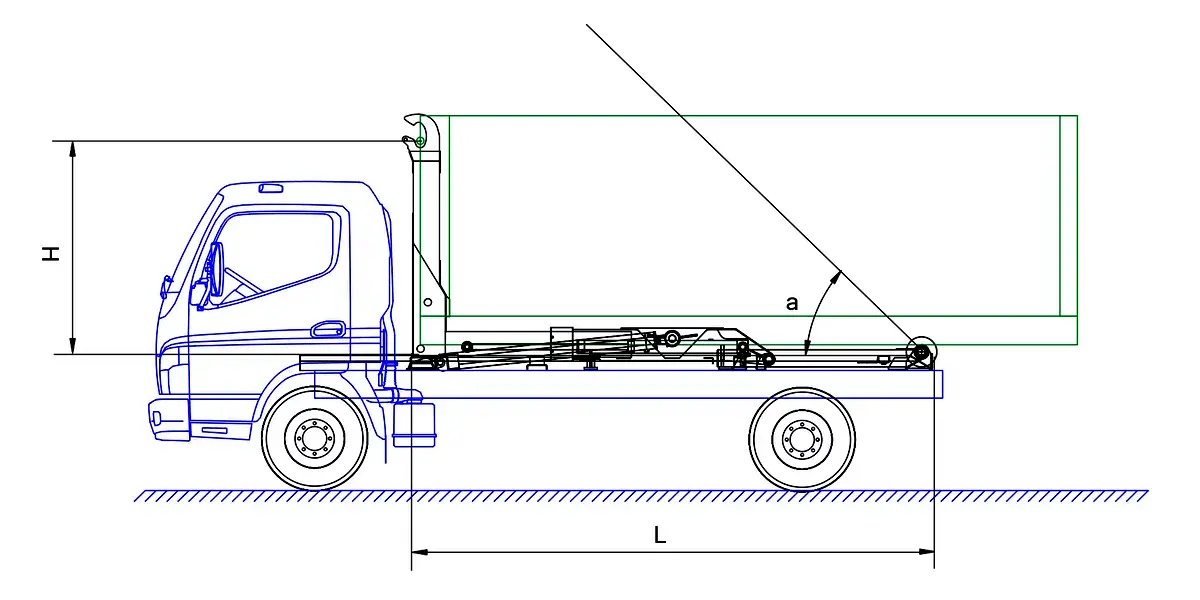

Hook Height
H(mm) *
1570 1570 1570 1570
Length
L(mm)
3550 3800 4200 4600
Container Length
Max(mm)
4250 4500 4750 5250
Container Length
Min(mm)
2750 3000 3250 3500
Tipping Angle
a(°)
56 52 52 49
Pump Flow
l/min
40-65 40-65 40-65 40-65
Pressure Setting
bar
140 165 165 175
