Tail Lift

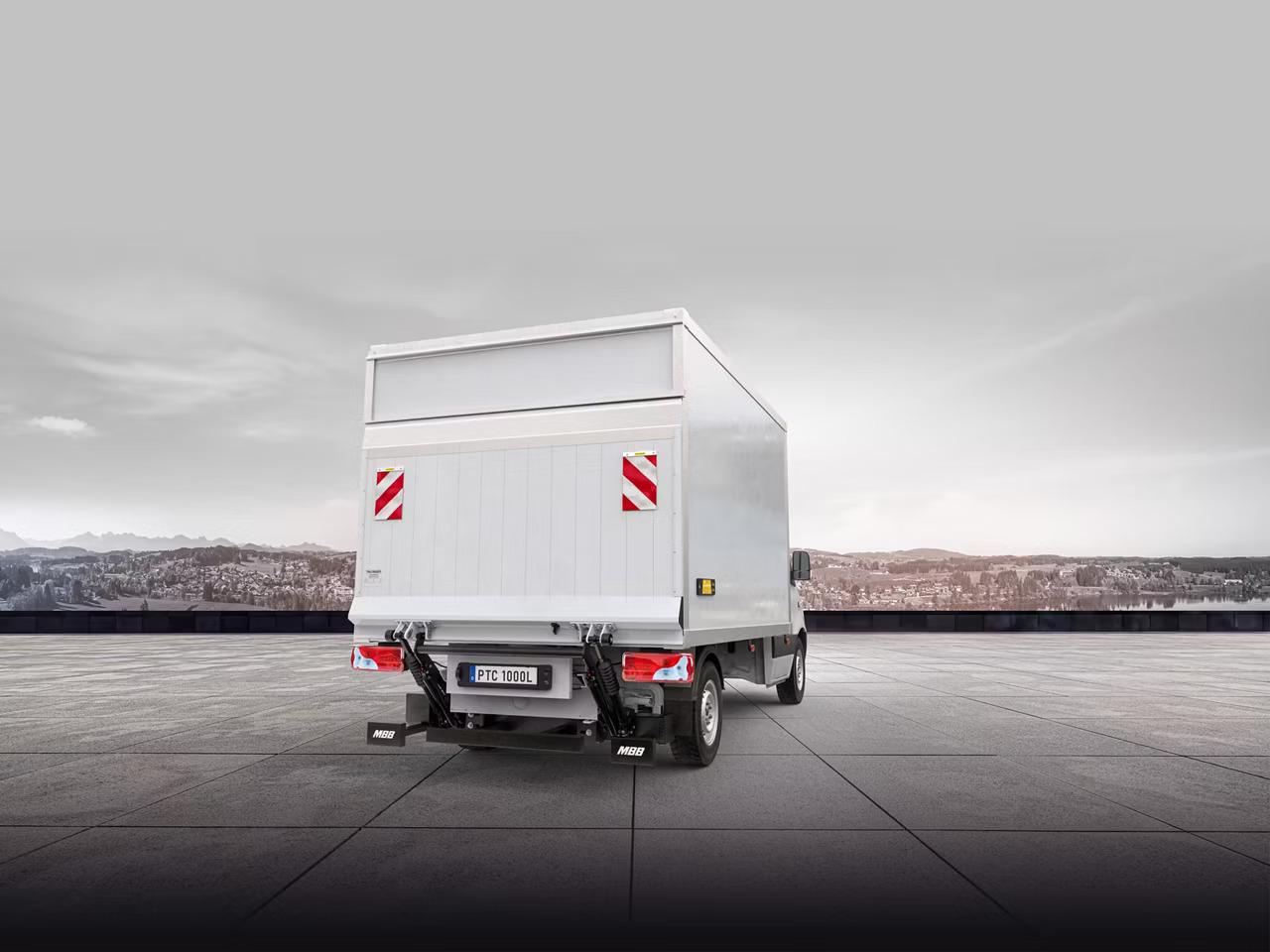

MBB PTC 1000 L
TAIL LIFT
The MBB PTC 1000 L brings PALFINGER’s next generation of tail lift technology to everyday loading and unloading. Its weight optimised construction and four cylinder mechanism combine practical lifting performance with smooth platform movement.
- 1,000 kg lifting capacity at a 600 mm load centre
- AluLite aluminium platform
- Slim Control Panel Basic supplied as standard
- MBB Control with integrated diagnostic functions
Product Features
Standard
Optional Features
Standard Features
- Four cylinder lifting mechanism: Two lifting and two tilting cylinders provide stable, precise platform movement.
- Corrosion protection: All steel components receive a KTL coating as standard.
- AluLite aluminium platform: Lightweight construction with an R10 slip resistant surface, warning lights and warning flags.
- Slim Control Panel Basic: A compact, robust control panel with an intuitive button layout.
- MBB Control: Electronic control system with integrated diagnostics to support fault finding.
- Underrun protection: Three piece underrun protection device.
Optional Features
- Stabilisers: Mechanical or hydraulic options for increased vehicle stability during loading.
- Alternative platforms: AluStar for demanding applications or AluPlan for a horizontally folding platform.
- Platform protection: Additional surface coatings, stainless steel edge caps and protective bars for lights and foot switches.
- MBB SafeVis: Illuminated platform edges and roll stops for improved visibility.
- MBB SafeClose: Obstruction detection that automatically stops closing movement when resistance is detected.
- Load and operator protection: Roll stops, container recesses and platform railings.
- Side loading: FixoEdge and FixoBridge equipment for loading from the side.
- Additional controls: Upgraded control panels, foot switches, Bluetooth remote, wanderlead and cabin controls.
- Software options: Functions such as QuickDown to reduce lowering time.
- Ball head coupling: Available when ordered or as a retrofit.
- Alternative hydraulic oils: Options for cold conditions or biodegradable oil.
Technical Data
Technical Data
Weights
Diagram
Dimensions
| Lifting capacity | 1000 kg |
| Main beam | 180 mm x 180 mm |
| Lifting gear hydraulics | 2 lifting cylinder / 2 tilting cylinder |
| Platform overlap with floor | – 44 mm |
| Lift arm pitch | 1,280 mm |
| Load centre – longitudinal | 600 mm |
| Load centre – across center | Central, 50% of rated load on one side |
| Inclination angle of the platform | +90° to -10° |
| Platform width | 2400 mm | 2400 mm | 2400 mm | 2400 mm |
| platform height | 1600 mm | 1700 mm | 1850 mm | 1800 mm |
| Dead Weight | 292 kg | 296 kg | 302 kg | 300 kg |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
| a (mm) | Q (kg) |
| 600 | 1000 |
| 750 | 800 |
| 950 | 600 |
| 1400 | 400 |
| Lifting arm lengths (mm) | 600 | 700 |
| H (max.) loading height, unloaded | 1060 | 1210 |
| H (min.) loading height, loaded | 750 | 760 |
| F (max.) middle of main beam to upper edge of loading floor | 585 | 659 |
| K (min.) at dimension F (max.) | 519 | 587 |
| D (min.) installation dimension | 671 | 738 |
| F (min.) | 420 | 430 |
| K (max.) at dimension F (min.) | 650 | 757 |
| D (max.) installation dimension | 802 | 909 |
