Tail Lift
MBB PTC 1500 L
TAIL LIFT
The MBB PTC 1500 L combines a 1,500 kg lifting capacity with a lightweight frame made from high strength steel. Designed for daily loading and unloading, it offers a robust solution for vehicles up to 16 tonnes gross vehicle weight, subject to installation suitability.
- 1,500 kg lifting capacity at a 600 mm load centre
- Two lifting cylinders and two tilting cylinders
- AluLite 40 aluminium platform
- Slim Control Panel Basic supplied as standard
Product Features
Standard
Optional Features

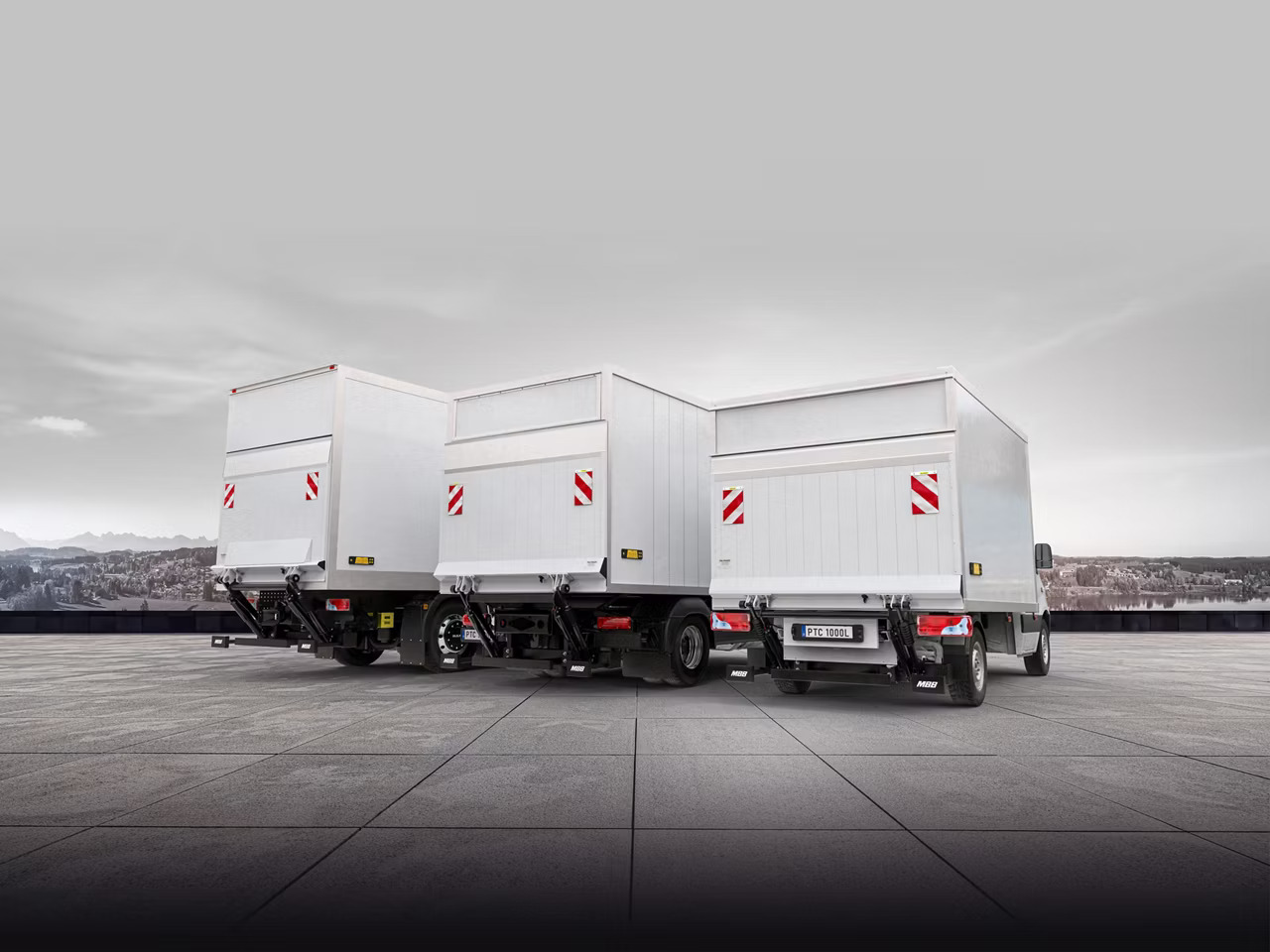

Standard Features
- Four cylinder lifting mechanism: Two lifting and two tilting cylinders provide stable, precise platform movement.
- Corrosion protection: All steel components receive a KTL coating as standard.
- AluLite aluminium platform: Lightweight construction with an R10 slip resistant surface, warning lights and warning flags.
- Slim Control Panel Basic: A compact, robust control panel with an intuitive button layout.
- MBB Control: Electronic control system with integrated diagnostics to support fault finding.
- Underrun protection: Three piece underrun protection device.
Optional Features
- Stabilisers: Mechanical or hydraulic options for increased vehicle stability during loading.
- Alternative platforms: AluStar aluminium or FerroStar X steel platforms for demanding applications.

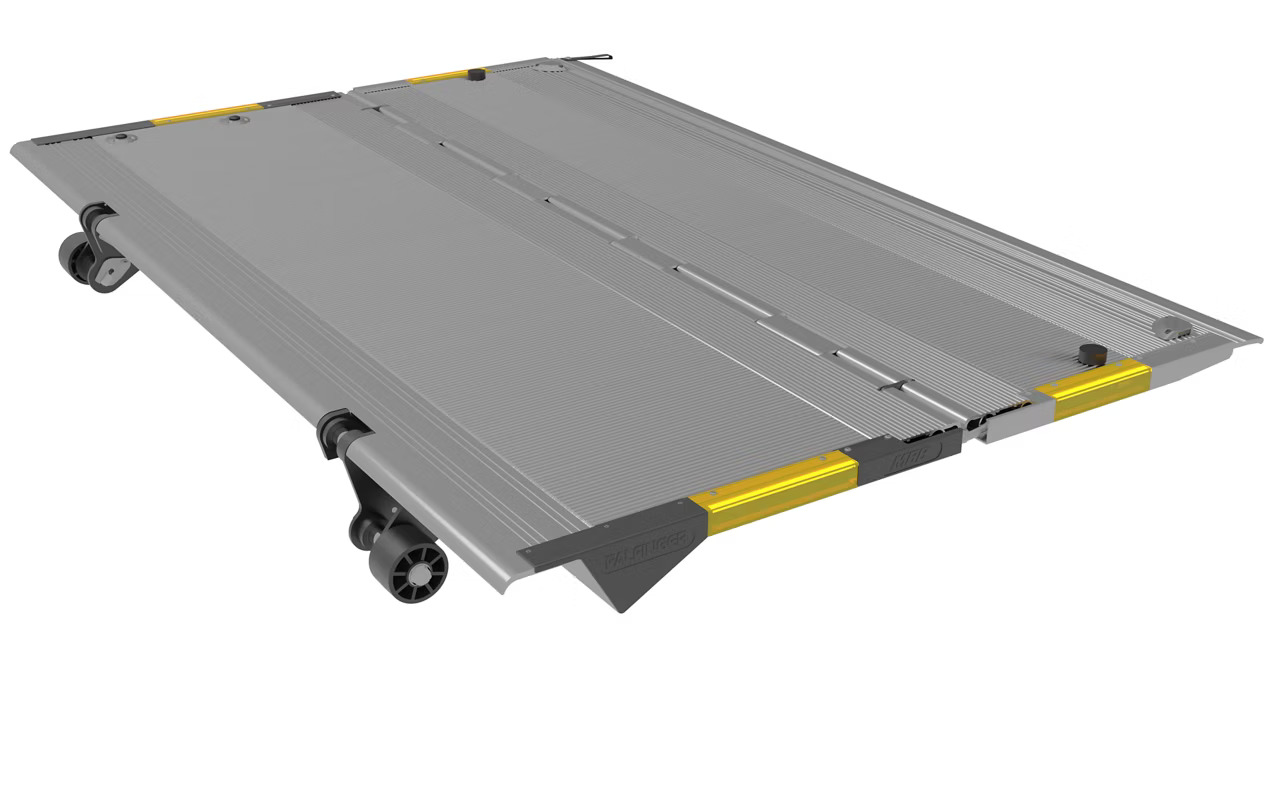

- AluPlan folding platform: Horizontally folding platform, with an optional locking system allowing equipment weighing up to 2,000 kg to travel across it.
- Platform coatings: Double cross milling for increased slip resistance or a synthetic coating for surface protection and reduced noise.
- Platform protection: Stainless steel edge caps and protective bars for warning lights and foot switches.
- MBB SafeVis: Illuminated platform edges and roll stops for improved visibility.
- MBB SafeClose: Obstruction detection that automatically stops closing movement when resistance is detected.
- Load protection: Roll stops and recesses for handling roll containers and other wheeled loads.
- Platform railings: Additional side protection, with options for AluStar and FerroStar platforms.
- Side loading: FixoEdge mounting profile and FixoBridge loading rail.
- Additional controls: Slim Control Panel Plus or Premium, foot switches, control box, Bluetooth remote, 3+1 control buttons and wanderlead controls.
- Cabin control: An additional control unit inside the driver’s cab.
- Software options: Functions such as QuickDown to reduce lowering time.
- Alternative hydraulic oils: Oil for temperatures down to −40°C or biodegradable oil.
- Additional powder coating: Extra protection for steel components.
Technical Data
Technical Data
Weights
Diagram
Dimensions
| Lifting capacity | 1,500 kg |
| Main beam | 180 mm x 180 mm |
| Lifting gear hydraulics | 2 lifting cylinder / 2 tilting cylinder |
| Platform overlap with floor | – 57 mm |
| Lift arm pitch | 1,310 mm |
| Load centre – longitudinal | 600 mm |
| Load centre – across center | Central, 50% of rated load on one side |
| Inclination angle of the platform | +90° to -10° |
| Platform width | 2,500 mm | 2,500 mm | 2,500 mm | 2,500 mm | 2,500 mm |
| platform height | 1,600 mm | 1,700 mm | 1,800 mm | 1,509 mm | 1,809 mm |
| Dead Weight | 377 kg | 382 kg | 387 kg | 521 kg | 559 kg |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
| a (mm) | Q (kg) |
| 600 | 1500 |
| 720 | 1250 |
| 900 | 1000 |
| 1200 | 750 |
| Lifting arm lengths (mm) | 700 | 800 | 900 |
| H (max.) loading height, unloaded | 1256 | 1409 | 1546 |
| H (min.) loading height, loaded | 887 | 922 | 998 |
| F (max.) middle of main beam to upper edge of loading floor | 728 | 811 | 894 |
| K (min.) at dimension F (max.) | 515 | 571 | 627 |
| D (min.) installation dimension | 665 | 721 | 777 |
| F (min.) | 510 | 572 | 625 |
| K (max.) at dimension F (min.) | 724 | 801 | 886 |
| D (max.) installation dimension | 874 | 951 | 1036 |
