Loader Crane

PK 12.501 SLD 5

SINGLE LINK AND PERFECT POWER TO WEIGHT RATIO OFFER EFFICIENT LOAD HANDLING

  • More power on the hook due to Single Link
  • Higher payloads due to intelligent lightweight design
  • Maximum reliability due to PALTRONIC
  • High degree of user-friendliness thanks to optional radio remote control
  • More lifting power due to A-HPLS
Enquire Now
High Power Lifting System

High Power Lifting System

The PALFINGER High Power Lifting System (E-HPLS, A-HPLS or S-HPLS) increases the capacity of the crane by up to 15% while reducing working speed. E-HPLS can be activated manually for the occasional manipulation of very heavy loads. A-HPLS as well as S-HPLS are activated fully automatically. There is continuous activation depending on the power required.

Read More
Paltronic

Paltronic

With the PALTRONIC, PALFINGER offers the latest control electronics for the series production crane. Different systems are available depending on the series and the range of functions. The most important safety and comfort functions include such as overload protection and different variations of the stability control system HPSC and High Power Lifting System HPLS.

High Speed Extension

High Speed Extension

The High Speed Extension is a standard feature on PALFINGER loader cranes. Also referred to as Return Oil Utilization, this feature is a regenerative hydraulic circuit for the extension booms. It speeds up the boom extend and retract functions by up to 30%.

Read More
Single Link

Single Link

The knuckle joint significantly improves the crane’s motion geometry.

Technical Data

Technical Data
Lifting Capacities
Technical Data
Max. lifting moment 11.4 mt
Max. lifting capacity 5700 kg
Max. hydraulic outreach 12.0 m
Max. manual outreach 15.9 m
Slewing angle 400°
Slewing torque 1.3 mt
Stabilizer spread (std) 3.3 m
Fitting space required (std) 0.72 m
Max. operating pressure 330 bar
Pump capacity 45 – 60 l/min
Dead weight (std) 1170 kg

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

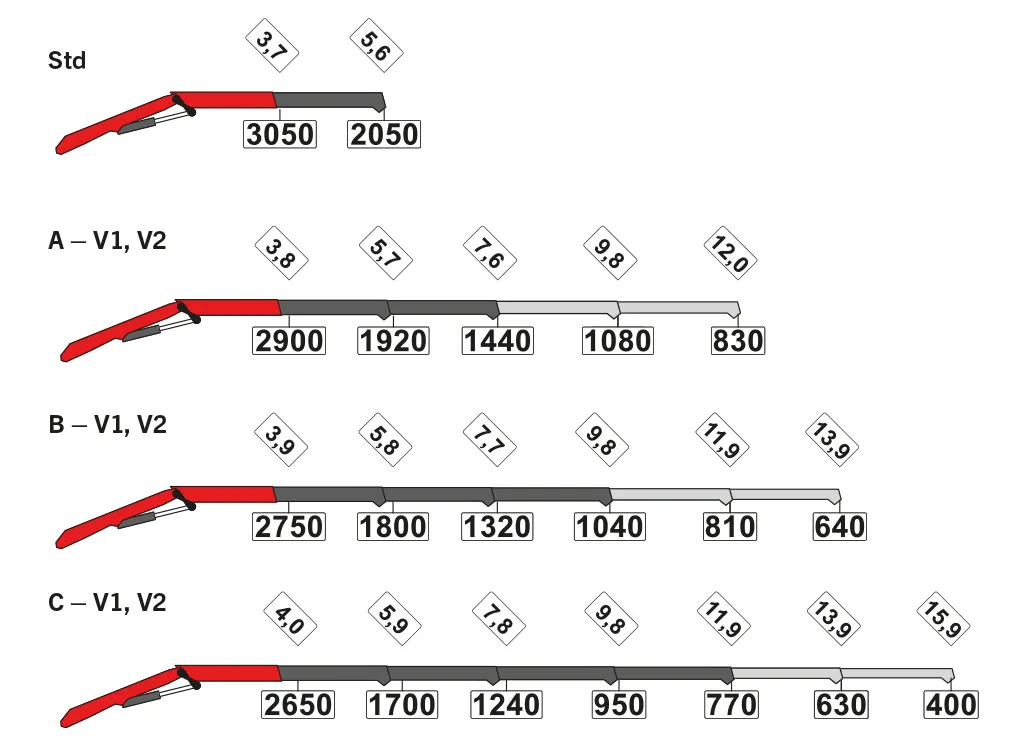

Lifting Capacities
Tech Icon Liftingoment IconLifting moment
(mt)
Tech Icon OutreachOutreach
(m)
Tech Icon Slewing AngleSlewing angle
(°)
Tech Icon Slewing TorqueSlewing torque
(mt)
Tech Icon PressurePressure
(MPa)
Tech Icon Pump CapacityPump capacity
(l/min)
Tech Icon Crane WeightCrane Weight
(kg)
Tech Icon Crane HeightCrane Height
(mm)
Tech Icon Crane WidthCrane Width
(mm)
Tech Icon Installation WidthInstallation Width
(mm)
Std 11.4 5.8 400 1.3 36.0 45-60 1170 2110 2400 720
A 11.1 7.8 400 1.3 36.0 45-60 1280 2110 2400 720
B 10.8 9.9 400 1.3 36.0 45-60 1380 2110 2400 720
C 10.5 12.0 400 1.3 36.0 45-60 1480 2110 2400 720

The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
