Hooklift

Versatility At All Stages

The versatility of the PALFINGER TELESCOPIC hooklift makes it the most popular choice among buyers. Covering the widest range of container lengths and lifting capacities on offer, it is configurable to meet a wide variety of standards and satisfy our customers worldwide. Its very low transport height and light weight contribute to the assets to maximize application options safely. The different comfort levels make this range highly customizable to the needs of the users and the market.

The PH T 22 can be installed on chassis from 26 to 28 t and is capable of handling containers up to 22 t in loading, unloading, trailer transfer and tipping.

Thanks to the telescopic jib, users will be able to handle a wide range of different container lengths and work on a variety of applications with the same vehicle. In addition, rental, transport or waste management companies increase the operating possibilities of their fleet. The range in length can be further extended with an articulated jib, while allowing the loading angle to be reduced to limit spillage.

With a low transport height, the PH T 22 enables you to transport larger containers to increase the available volume. In addition, its light weight optimizes the available payload. Both benefits reduce the number of round trips required to complete a job, saving time and money.

ADVANTAGES of the TELESCOPIC category

  • Covers the widest range of container lengths
  • Low transport height
  • Easy to use and service
Enquire Now
Perfection in Action

Images & Videos

Images
Videos
Images
Videos

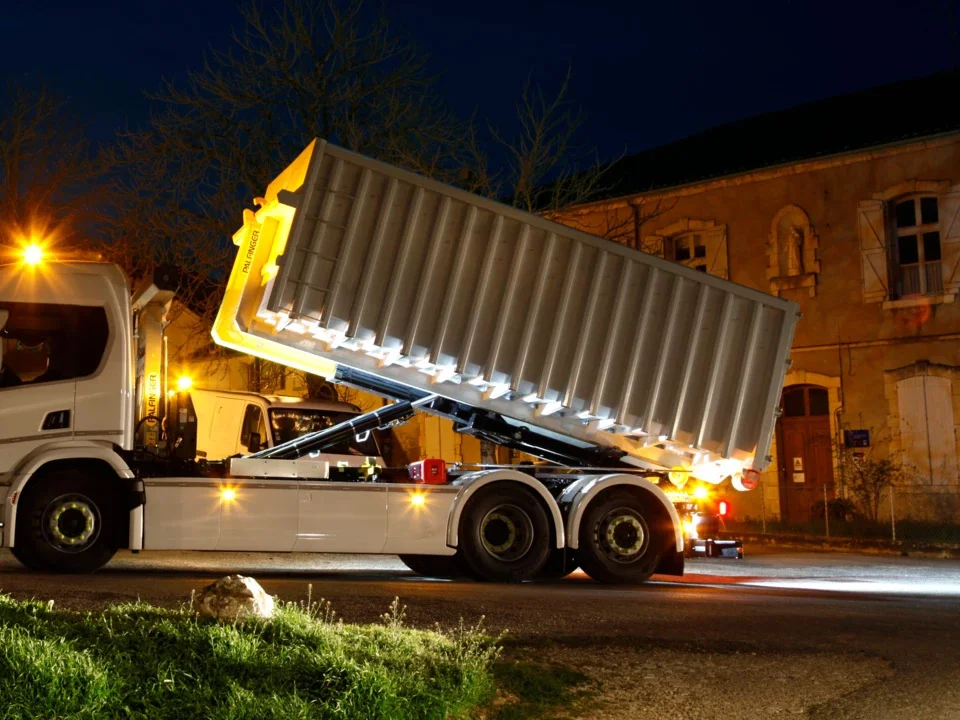

Noise Or Safety, Why Should You Choose?

Whether it’s to keep a sleepy street quiet or to reduce the sound level of a noisy site, the new “Silent mode” option can improve working conditions while maintaining a high level of safety.

When the option is activated, the traditional buzzer is replaced by three flashing lights to warn of possible arm movement. The lights are strategically placed around the hookloader for maximum visibility: one at the front and two at the rear. The safety of the work site is preserved and the operator handles the containers in better conditions.

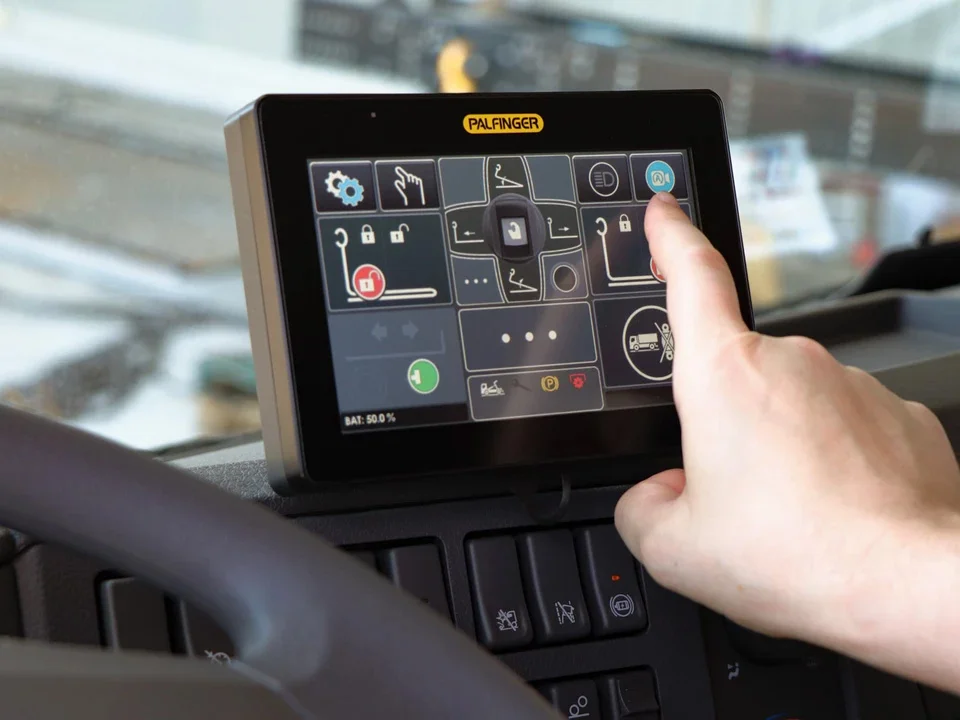

View Following Function, The Right Cam At The Right Time

The VFF has been developed to allow a better control of operations from inside the cab. Drivers can see accurately and without effort, what they are doing. They can adjust their handling at the right moment saving time without compromising safety

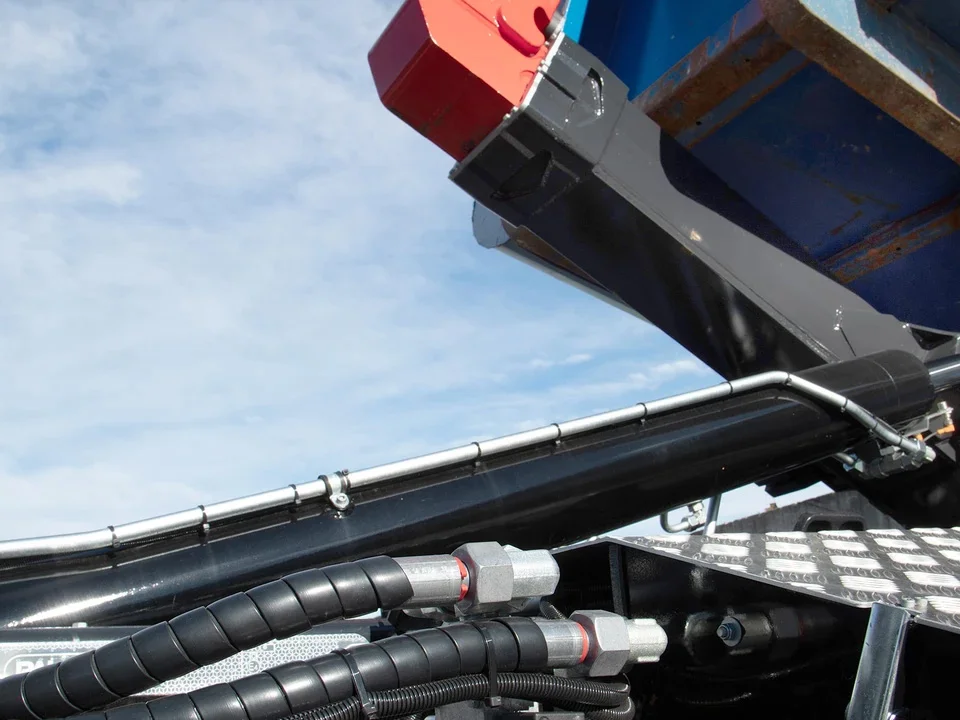

Advanced Rapid Motion

The advanced rapid motion option reduces the cycle time by enabling high speed operation while extending (-50%) and retracting (-30%) the tipping cylinders. This function is unique on the market and patented.

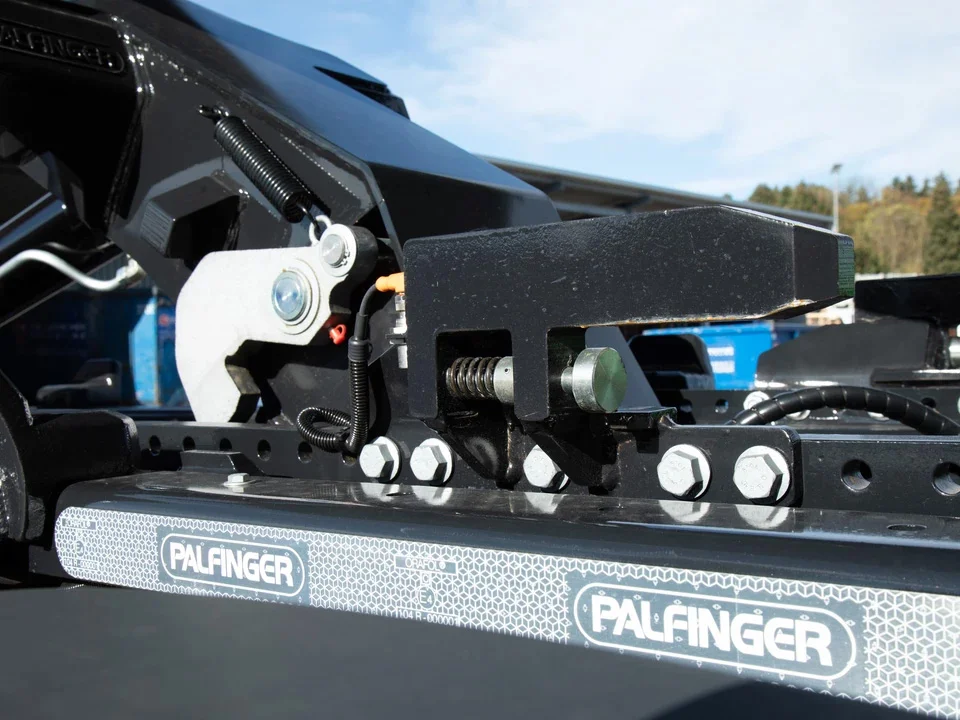

Adaptability

  • Configurable to your requirements
  • One range – your applications
  • For every use intensity

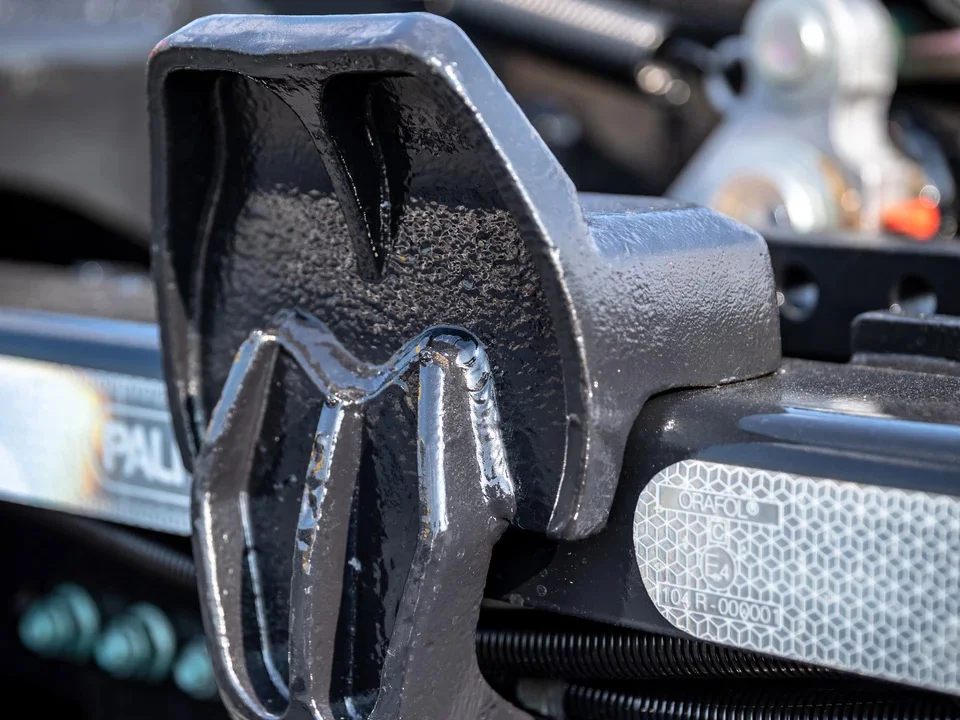

Flexible

  • Configurable to your requirements
  • One range – your applications
  • For every use intensity

Palfinger Origin Protection

The main components are sand-blasted, degreased, primer painted and final coated (according to customer specification) before assembling, all other parts are zinc nickel anticorrosion treated (meets ISO 12944 standard specifications concerning surface protection, classification 3).

Technical Data

Technical Data
Technical Data
Market standards :  NF – DIN
Hookheight (mm) :  1425-1570
Length (mm) :  4750-4900-5100-5300-5500-5650-5850-6000-5150-6300-6450-6600
Container min. length :  3500 mm
Container max. length :  7800 mm
Rail width :  1060-1065 mm
GVW truck :  26-28 t
Average weight :  2305 kg
Transport height :  240 mm
Tipping angle :  45-53°
