VERSATILITY AT ALL STAGES
The versatility of the PALFINGER TELESCOPIC hooklift makes it the most popular choice among buyers. Covering the widest range of container length and lifting capacity on offer, it is configurable to meet a wide variety of standards and satisfy our customers worldwide. It’s very low transport height and light weight contribute to the assets to maximize application options safely.
The T 26 is suitable for 4-axle truck chassis application, and is capable of handling containers up to 26 t in loading, unloading, trailer transfer and tipping.
Thanks to the telescopic jib, users will be able to handle a wide range of different container lengths and work on a variety of applications with the same vehicle. In addition, rental, transport or waste management companies increase the operating possibilities of their fleet.
Thanks to a low transport height, the T 26 enables you to transport larger containers to increase the available volume. In addition, its light weight optimizes the available payload. Both benefits reduce the number of round trips required to complete a job, saving time and money.
ADVANTAGES of the TELESCOPIC category
- Covers the widest range of container lengths
- Low transport height
- Easy to use and service
Palfinger Origin Protection
The main components are sand-blasted, degreased, primer painted and final coated (according to customer specification) before assembling, all other parts are zinc nickel anticorrosion treated (meets ISO 12944 standard specifications concerning surface protection, classification 3).

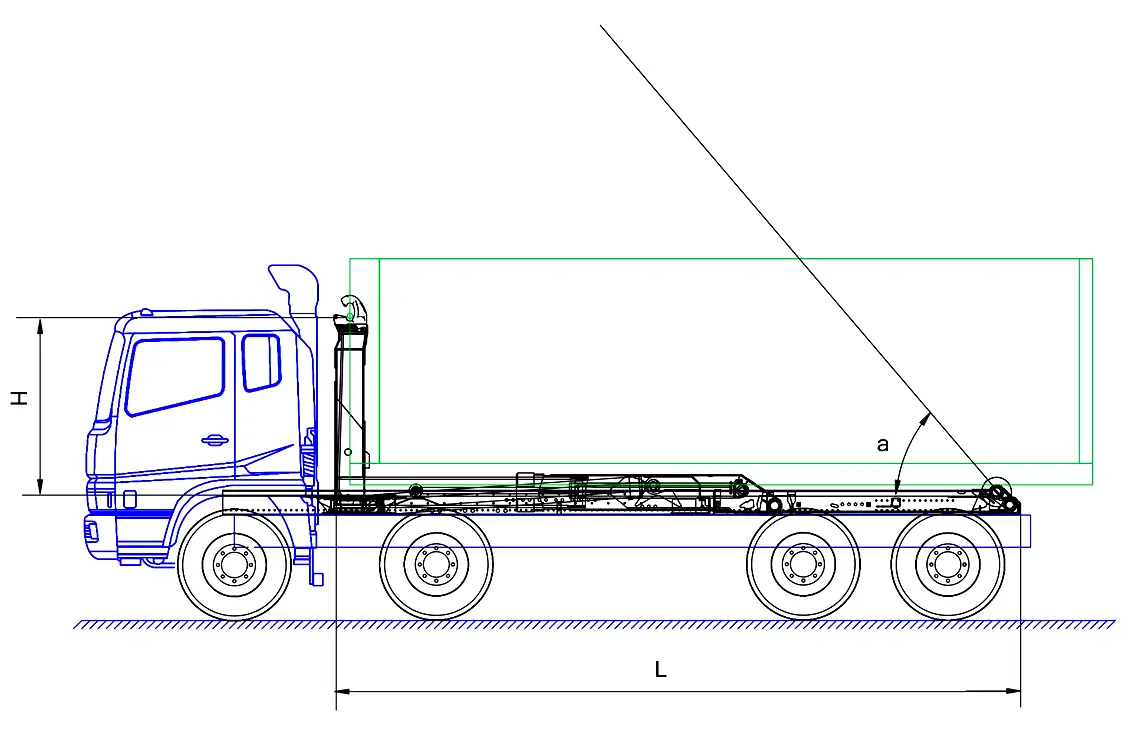

Technical Data
| Product type | T26_PI-SZ_01_L5760 | T26_PI-SZ_01_L6010 | T26_PI-SZ_01_L6310 | T26_PI-SZ_01_L6760 |
| Lifting Capacity t |
26 | 26 | 26 | 26 |
| Dead Weight kg |
2780 | 2820 | 2930 | 3000 |
| Truck GVW t |
32-40 | 32-40 | 32-40 | 32-40 |
| Hook Height H(mm) * |
1570 | 1570 | 1570 | 1570 |
| Length L(mm) |
5670 | 7000 | 7500 | 8000 |
| Container Length Max(mm) |
6750 | 7000 | 7500 | 8000 |
| Container Length Min(mm) |
4250 | 4500 | 4750 | 5400 |
| Tipping Angle a(°) |
50 | 50 | 48 | 49 |
| Pump Flow l/min |
80-110 | 80-110 | 80-110 | 80-110 |
| Pressure Setting bar |
230 | 255 | 280 | 295 |
